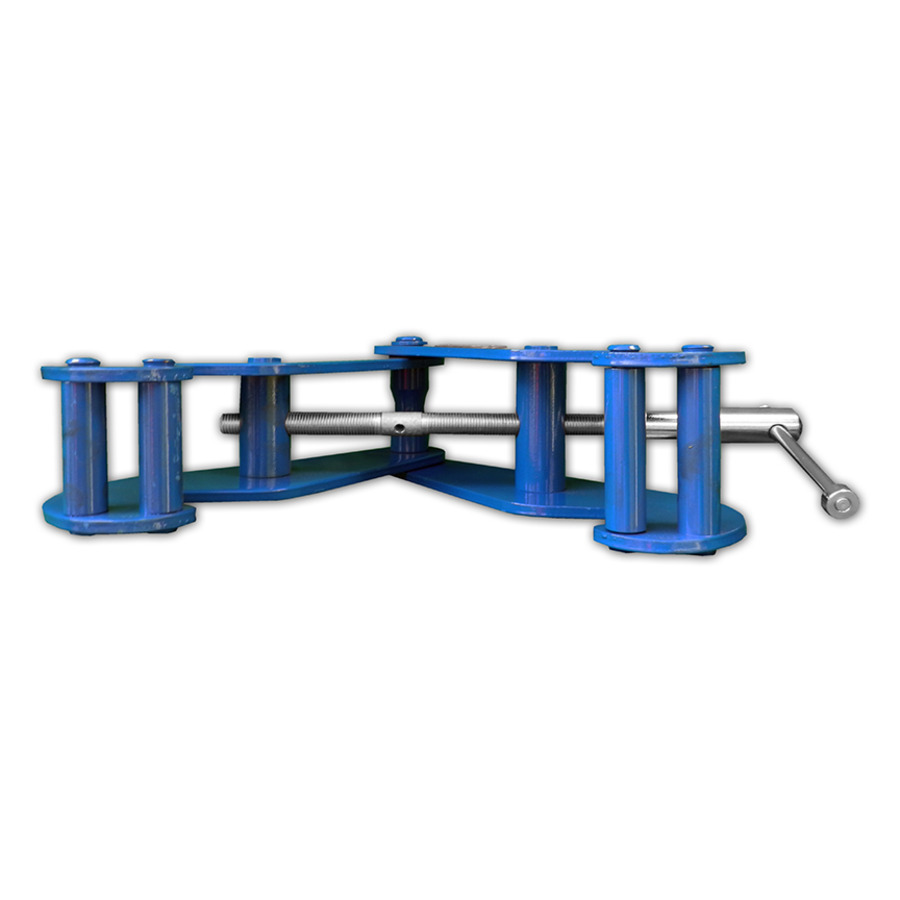

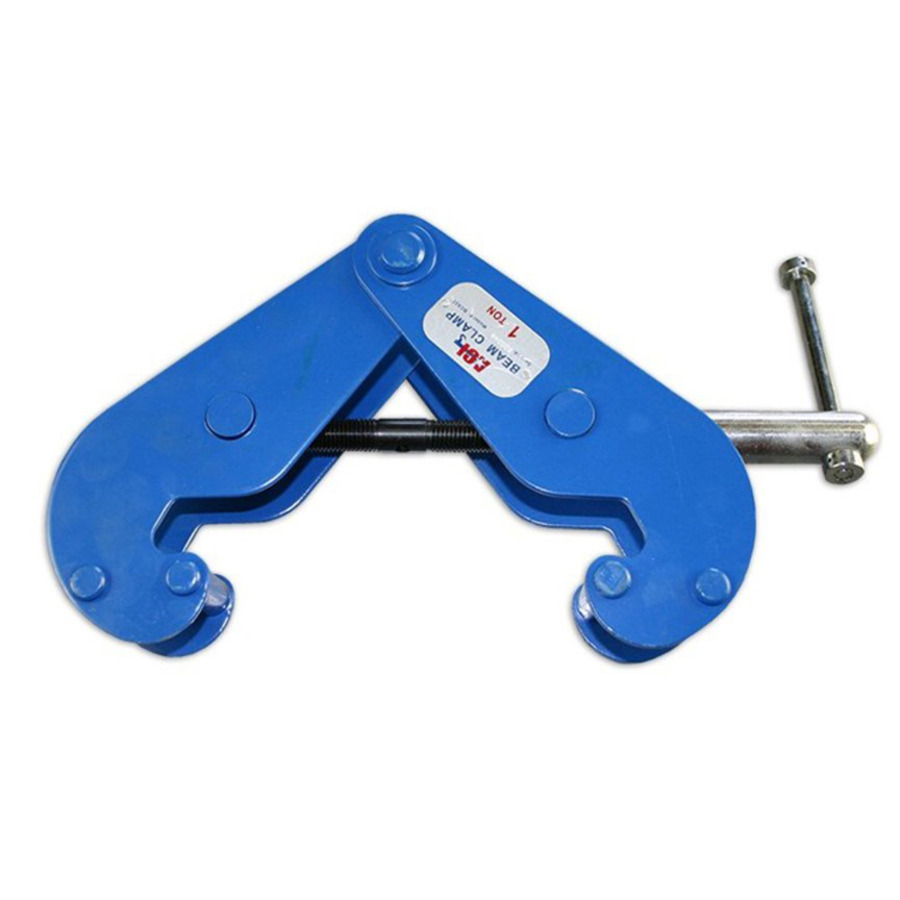

BC-020: 1 Ton Beam Clamp

$72.80

SKU: BC-020 Categories: , , ,
Description

Description

Quick Ship: Same Day Shipping

Standard Features Include:
  • Capacity: 1 to 10 Ton in stock. Higher capacities available upon request.
  • Easy to install with minimum headroom.
  • Robust all steel construction for safe operation.
  • Compact size and lightweight.
  • Special clamp jaw design distributes loads away from the edge.
  • Threaded screw fits securely on a wide range of flange width and beam sizes.
  • Easy to replace parts.
  • We can customize any product to your specific needs. Contact us to find out how.
  • View the full DIMENSIONS & SPECIFICATIONS here. Click on the literature tab to download this product’s pertinent information.
Dimensions & Specifications
Capacity (ton) 1
Model Number BC-020
Max Flange Thickness (in) 0.875
Flange Width (in) 2.9-8.6
Weight (lb) 10
Additional information

Additional information

Weight 10 lbs
Capacity

Flange Width (in)

Maximum Flange Thickness (in)
