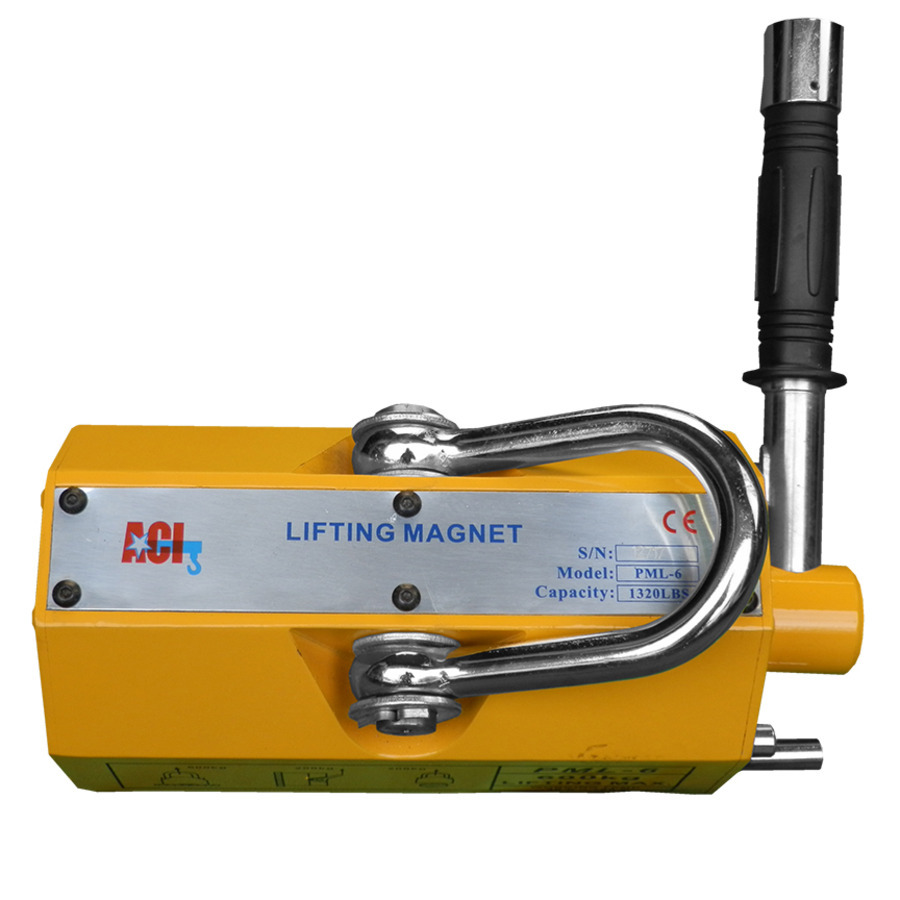

PML-6: 1,320 lb Lifting Magnet


SKU: PML-6 Categories: ,


Quick Ship: Same Day Shipping

Standard Features Include:
  • Capacity Range: 220 to 4,400 lbs. Higher capacities available upon request.
  • One piece suspension frame.
  • Low effort to lift maximum load.
  • A great concentration of power with ASME B30.20 rating.
  • Fully machined lift wheel.

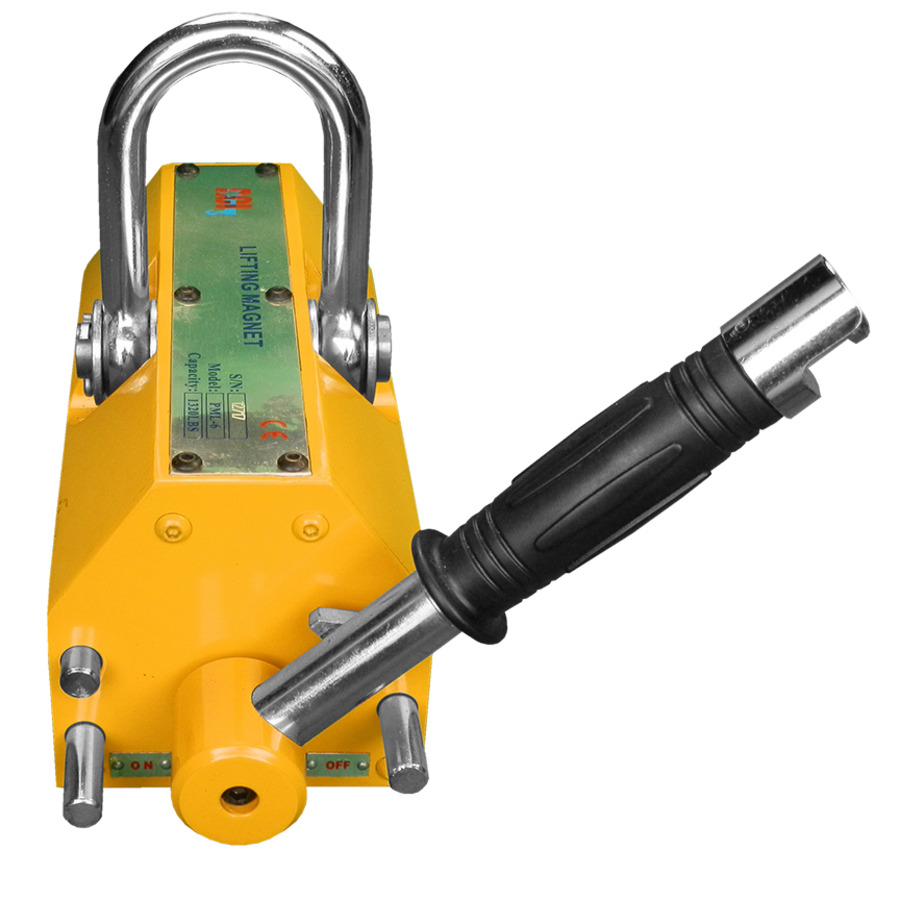

  • On & off handle lock. The handle controls an inner magnetic system for safe and easy operation.
  • Use of high-energy magnetic material ensures a compact, lightweight and durable design.
  • Simple locking witch handle enable safe, quick and easy one-handle operation.
  • Very low residual magnetism for quick and efficient handling of work pieces.
  • Large shackle top fitting for easy attachment of slings and rigging.
  • V slot in bottom lifting face for lifting rounds as well as flats.

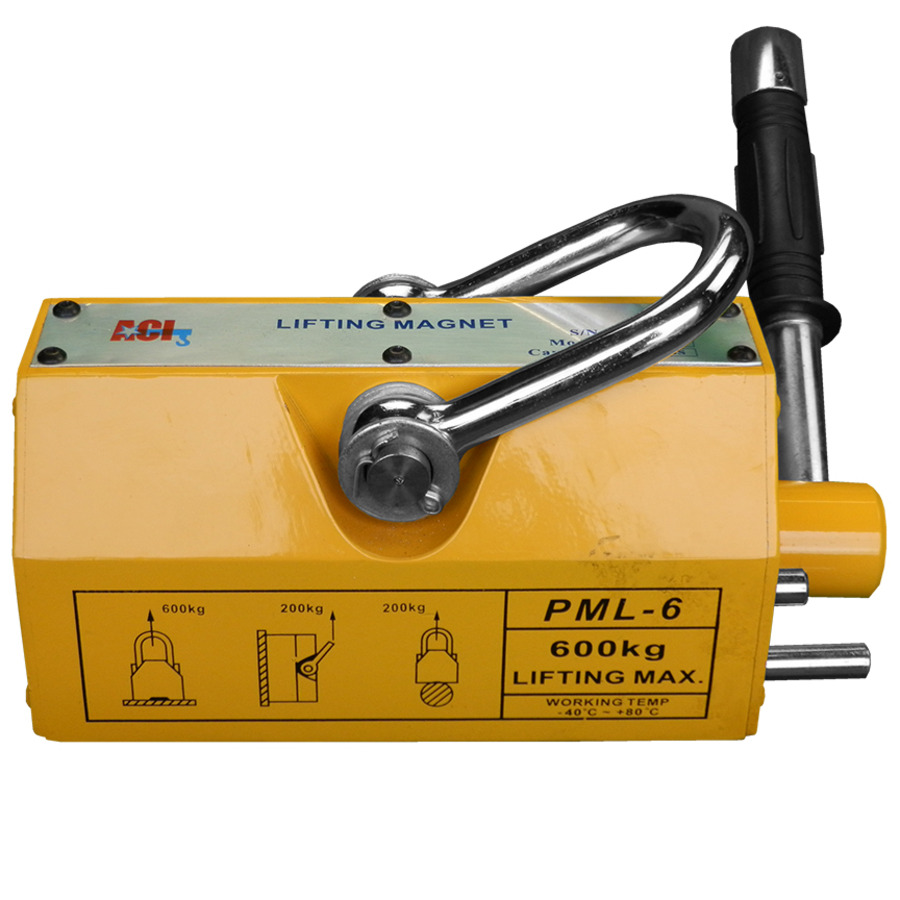

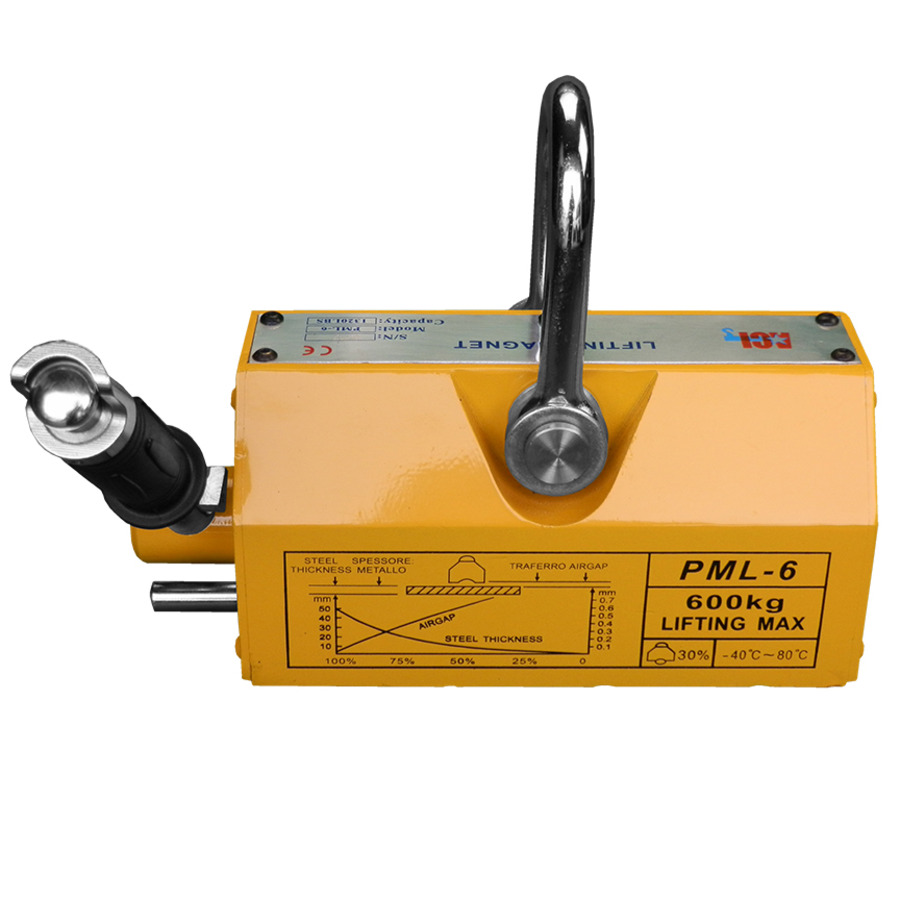

  • Clear markings of duration for varying shaped work pieces, lifting conditions, air gap, steel thickness, etc.
  • Individually fully proof load tested by ACI Hoist & Crane.
  • The Maximum operation temperature is 80 degrees C.
  • We can customize any product to your specific needs. Contact us to find out how.
  • View the full DIMENSIONS & SPECIFICATIONS here. Click on the literature tab to download this product’s pertinent information.
Dimensions & Specifications
Capacity 1,320 lb. (600 kg)
Model Number PML-6
Max Rated for Round Steel (lb) 594
Max Rated for Flat Steel (lb) 1,320
Max Breakaway Force (lb) 4,629
Weight (lb) 53
Additional information

Additional information

Weight 53 lbs

Maximum Breakway Force (lb)
