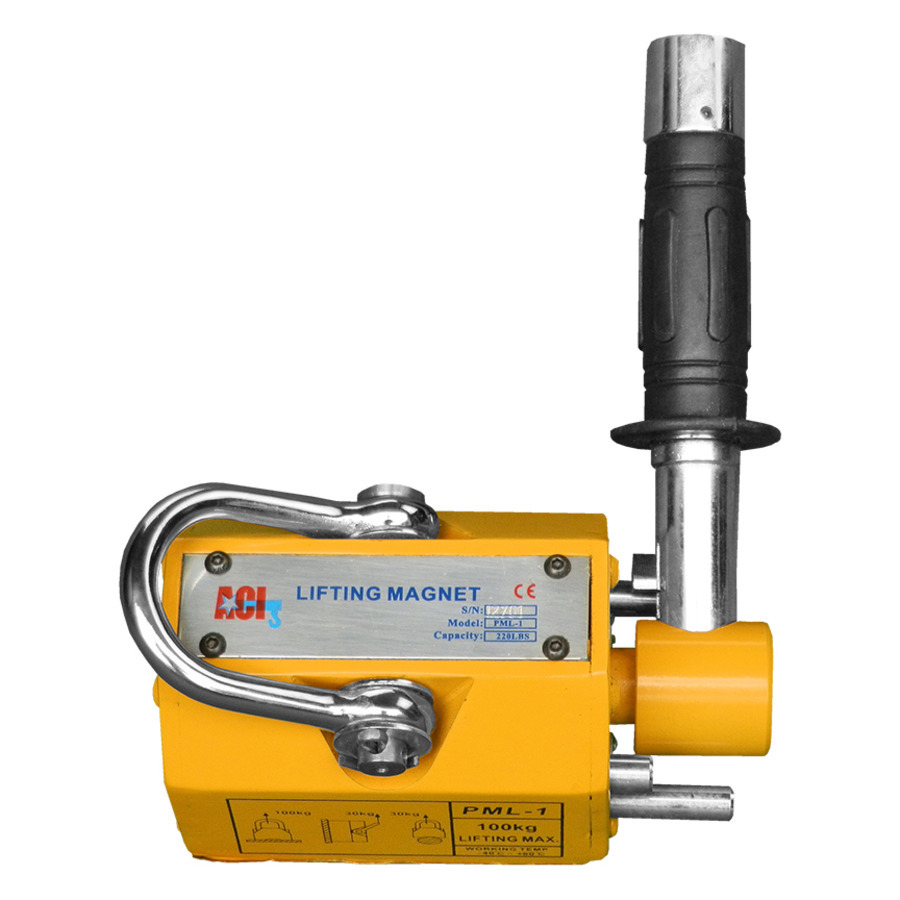

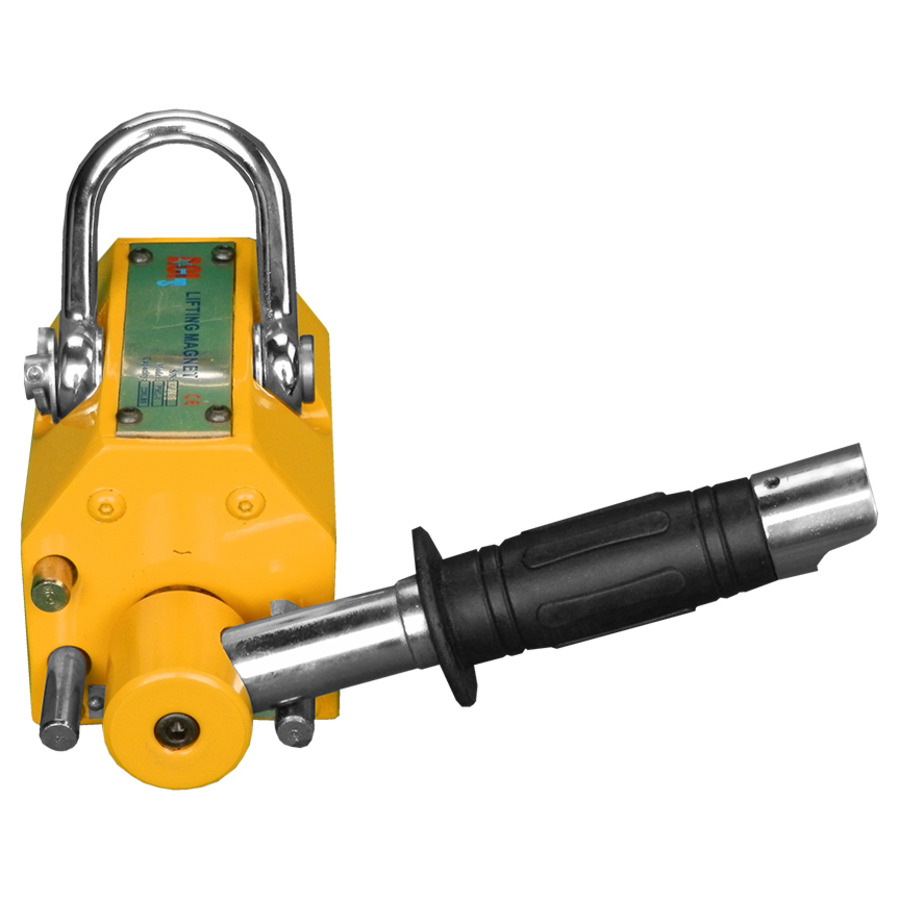

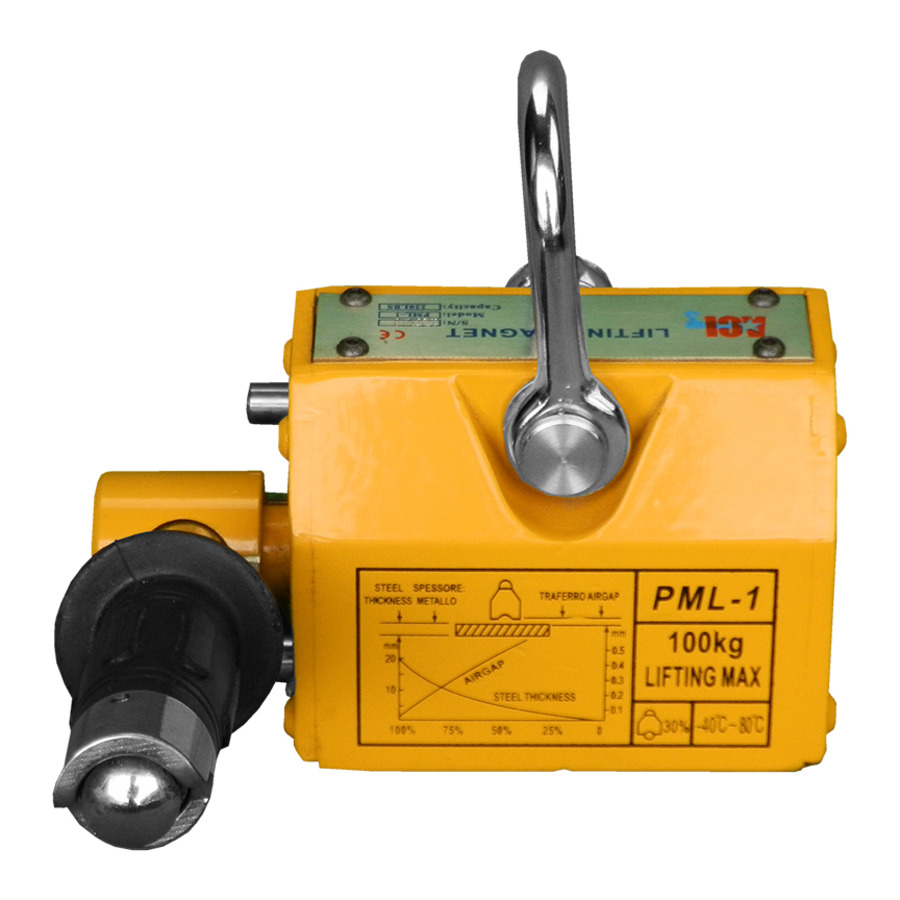

PML-1: 220 lb Lifting Magnet

$307.80

SKU: PML-1 Categories: , ,
Description

Description

Quick Ship: Same Day Shipping

Standard Features Include:
  • Capacity Range: 220 to 4,400 lbs. Higher capacities available upon request.
  • One piece suspension frame.
  • Low effort to lift maximum load.
  • A great concentration of power with ASME B30.20 rating.
  • Fully machined lift wheel.
  • On & off handle lock. The handle controls an inner magnetic system for safe and easy operation.
  • Use of high-energy magnetic material ensures a compact, lightweight and durable design.
  • Simple locking witch handle enable safe, quick and easy one-handle operation.
  • Very low residual magnetism for quick and efficient handling of work pieces.
  • Large shackle top fitting for easy attachment of slings and rigging.
  • V slot in bottom lifting face for lifting rounds as well as flats.
  • Clear markings of duration for varying shaped work pieces, lifting conditions, air gap, steel thickness, etc.
  • Individually fully proof load tested by ACI Hoist & Crane.
  • The Maximum operation temperature is 80 degrees C.
  • We can customize any product to your specific
    needs. Contact us to find out
    how.
  • View the full DIMENSIONS & SPECIFICATIONS here. Click on the literature tab to download this product’s pertinent information.
Dimensions & Specifications
Capacity 220 lbs. (100 kg)
Model Number PML-1
Max Rated for Round Steel (lb) 66
Max Rated for Flat Steel (lb) 220
Max Breakaway Force (lb) 771
Weight (lb) 6.68
Additional information

Additional information

Weight 7 lbs
Capacity

Maximum Breakway Force (lb)
