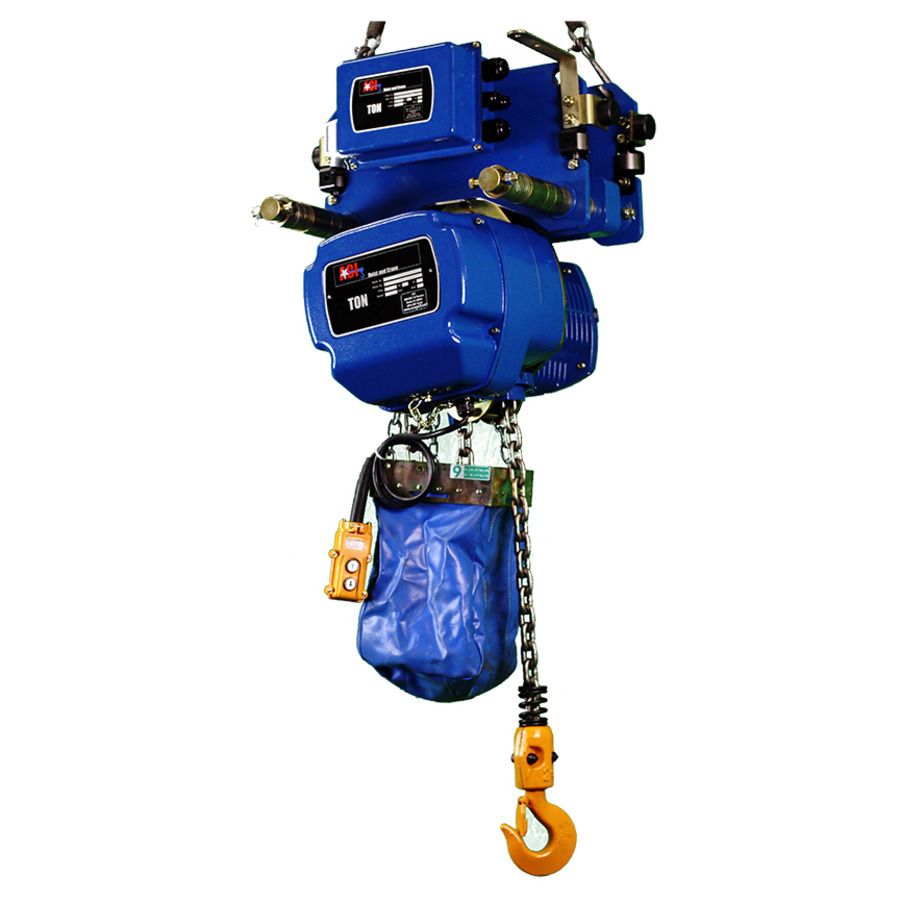

Standard Features Include:
- Capacity: 1/4 to 20 Ton in stock. Higher capacities available upon request.
- H4 Duty Cycle (Max. Run Time ~30 min./hr., 300 max starts/hr.)
- Heavy duty, wear resistant load chain.
- Upper & lower limit switches cut the power directly to the motor. This safety device is required in hot metal and critical uses.
- Dual Brake; mechanical & electrical brakes.
- Trolley brake, drop lugs and bumpers.
- Sealed body suitable for both indoor and outdoor usage.
- High performance mechanically and electrically interlocked contactor.
- Motorized trolley with side roller system allows for smooth maneuvers through turns.
- Standard Chain Container included.
- We can customize this hoist to your specific needs. Contact us to find out how.
